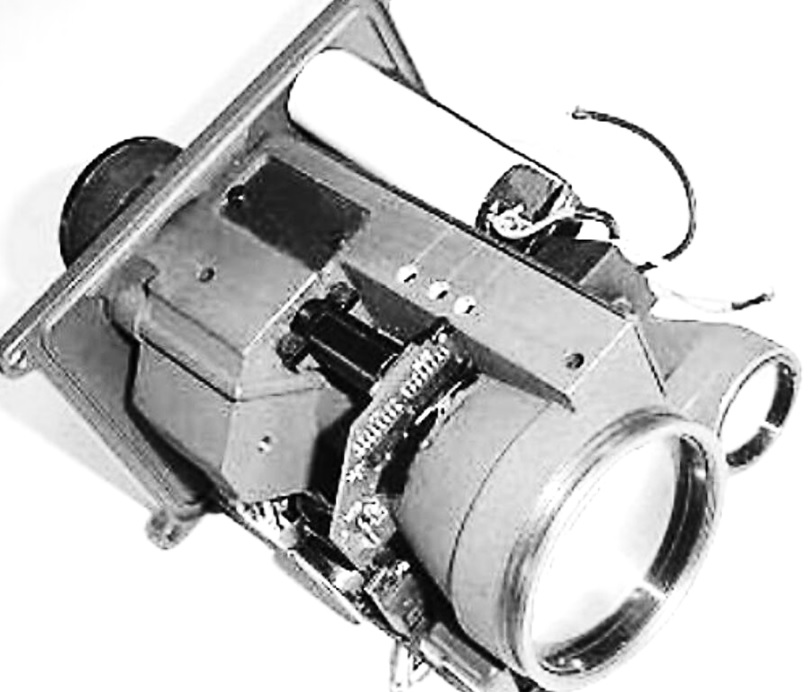

Laser Range finder
Product features:
Description and Specs
Specification | Specification | |||||||||
PHYO-00B | PHYO-00C | PHYO-WH40 | PHYO-50 | PHYO-01C1 | PHYO-01C2 | PHYO-01C3 | PHYO-XA21 | Note | ||
LRF | Wavelength | 1550nm | 1550m | 1535 | 1535 | 1535 | 1535 | 1535 | 1534 | Customized design upon request |
Measurement Range | 30-3500m | 30-3000m | 50-6000m | 50-8000m | 50-11000m | 50-13000m | 50-15000m | 50-21000m | ||
Measurement Accuracy | 1m | 1m | 1m | 1m | 2m | 2m | 3m | 5m | ||
Measurement Frequency | 1Hz | 1Hz | 5Hz | 0.5Hz | 1-5Hz | 1-5Hz | 1-5Hz | 10Hz | ||
False Alarm rate | <1% | <1% | <1% | <1% | <1% | <1% | <1% | <1% | ||
Divergence | 1.2mrad | 1.2mrad | 1.2mrad | 1mrad | 0.8mrad | 0.9mrad | 0.6mard | 0.5mrad | ||
Receiver Aperture | 24mm | 17mm | 50mm | 65mm | 65mm | 65mm | ||||
Data interface | UART | UART | UART | UART | UART | UART | UART | UART | ||
Power comsumption | 1.5w operation | 1.5w operation | 2w | <4w | <4.2w | <5w | 200mw | |||
Size | 51*49*28mm | 50*37*22mm | 90*70*60 | 90*75*60 | 120*83*75mm | 120*83*75mm | 120*83*75mm | |||
Weight | <55g | <45g | 200g | <180g | <450g | <450g | <450g | <450g | ||
Operation temperature | from -40 to +55 | from -40 to +55 | from -40 to +55 | from -40 to +55 | from -40 to +55 | |||||
Storage temperature | from-55 to +70 | from-55 to +70 | from-55 to +70 | from-55 to +70 | from-55 to +70 | |||||
