Product features:
This EOIR system with the function for day camera, uncooled thermal image, including a 4500m Laser Range Finder Modules installed. The biggest feature for this EOIR gimbal as very compact in design with low weight less than 14kgs, please reference the details specification as follows.
Description and Specs
System Parameter | ||
Gimble | 2-axis 4 frame | |
Rotation Range | Azimuth | 360degree countinousely |
Elevation | -90 to +90degree | |
Stabilization Accuracy | 25urad, 35urad, 50urad | |
Angular Velocity | Azimuth >60degree/s, Elevation >60degree/s | |
Angle Accuracy random error | <0.1degree | |

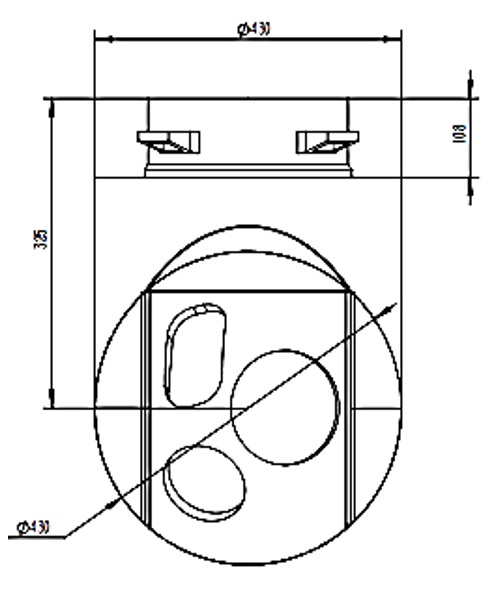

Weight | <14kg with Dia265mm | |
Operational Temperature | +60 to -20degree | |
IP level | IP67 | |
System Interface | Power supply | DC12-36V |
Communication | RS422/RS232 | |
Video | SDI/sync RS422/Ethernet Port | |
Optional | GPS, DVR,Compass,etc | |
High Definition Day Camera | ||
Detector | 1/2.8'' Color CMOS | |
Resolution | 1920*1080 | |
Focal Length | 4.3-129mm (F1.6-F4.7) | |
FOV | 63.7° to 2.3° | |
Zoom | Optical zoom 30X, Digital Zoom 12X | |
Interface | HD-SDI | |
Thermal Camera | ||
Type | uncooled Thermal Camera | |
Detector | 640*512 uncooled focal plane | |
Pixel | 17um, 640*512 | |
Working Spectral Range | 8-14um | |
Frame frequency | 25Hz | |
Focal Length | 80mm | |
FOV | 7.79° * 6.23° | |
Video interface | PAL | |

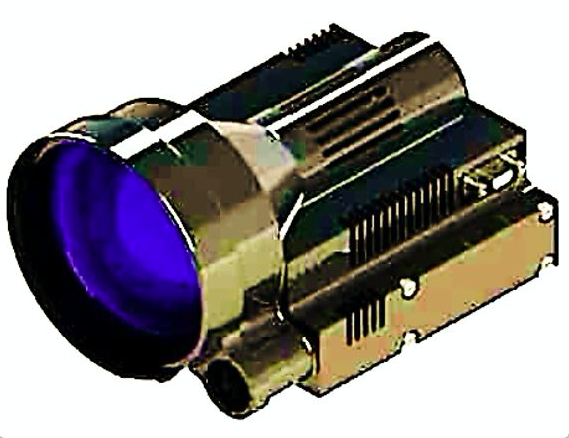

Laser Range Finder (LRF) | ||
Laser measurement range | 5-3500m | |
Collimation angle | <1.0mard | |
Wavelength | 1550nm | |
Accuracy rate | >98% | |
Communication | RS422 | |
Ranging Accuracy | +/-2m | |

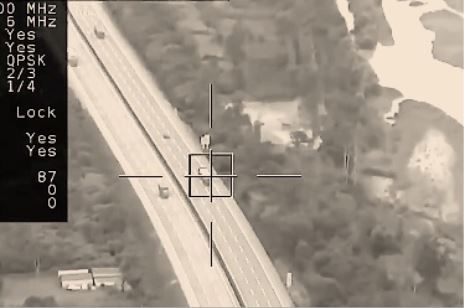

Application
UAV
Security and monitoring
Others
This is a kind of three in one type gimble system with day/thermal and LRF cameras, integrated search and tracking function, high tracking accuracy and stabilization under extreme conditions. Moreover, the system just approval for a good function in many different applications, like marine, truck, board, helicopter, and unmanned airplane etc. Because of such a typical system, so using on above mentioned environment already proved to be function in a perfect way and maximum reach the targeted purpose.
