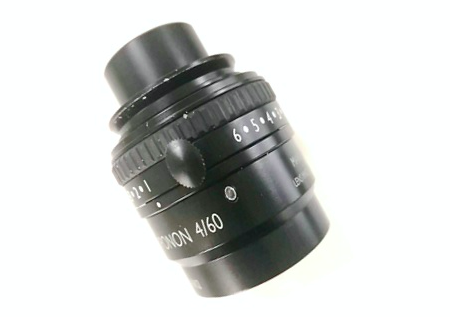

Industry Lenses

Product features:


Standard Industry lenses for machine vision, ioT, and inspection etc.

They are high in definition, stable in working, compatible to different application systems.






File Download

  • Industry Lenses
  • Industry Lenses

Description and Specs

Specification

Part Number ( Industry view Lenses)

PHYO5M08F

PHYO5M12F

PHYO10M17F

PHYO10M18F

PHYO10M25F

PHYO10M35F

PHYO10M50F

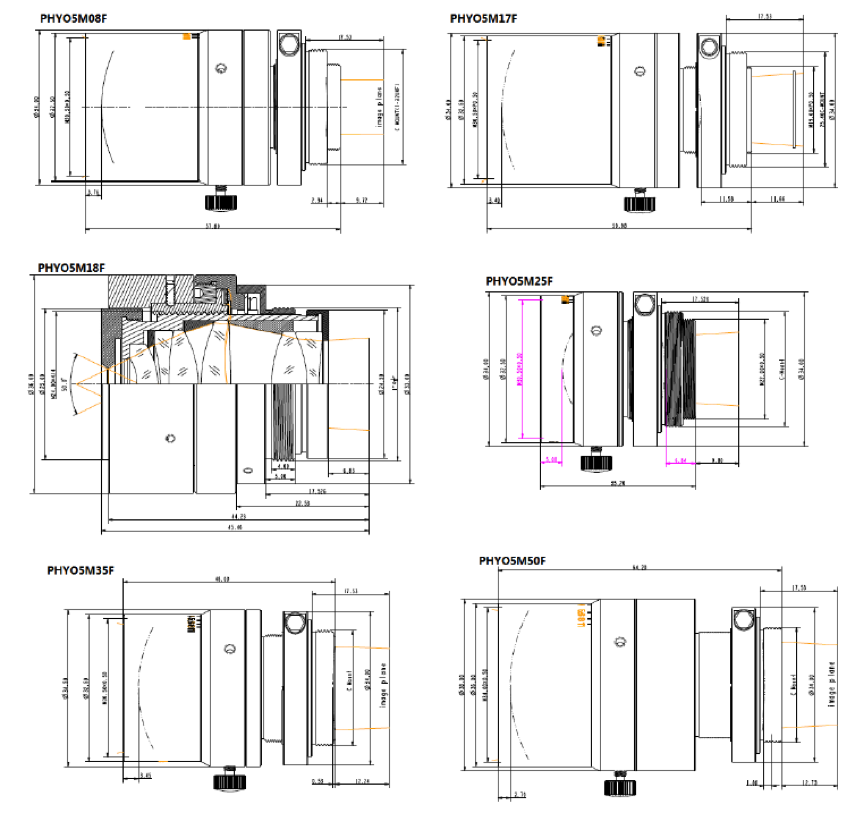

Structure

9 glass Metal house

9 glass Metal house

7glass Metal House

6glass metal House

6glass metal House

7 glass metal House

8glass metal house

Sensor type

2/3"

2/3"

1''

1''

1''

1.1''

1.1''

Max Image

Dia11mm

Dia11mm

Dia16.09mm

Dia11.0mm

Dia16.2mm

Dia17.57mm

Dia17.64mm

Focal Length

8mm

12mm

17mm

18mm

25mm

35mm

50mm

F/#

2.4

2.4

2.4

3.6

2.4

1.8

1.8

BFL

12.66mm

11.71mm

23.05mm


16.31mm

12.76mm

16.63mm

Total Length

63.76mm

60.61mm

59.98mm

44.3mm

39.9mm

56.78mm

74.14mm

Mount

C mount

C mount

C - Mount

C-Mount

C-mount

C-mount

C-mount

Operating temperature

 -20 to +80degree

 -20 to +80degree

 -20 to +80degree

 -20 to +80degree

 -20 to +80degree

 -20 to +80degree

 -20 to +80degree



Application

Machine vision

Industry

Automotive

Camera and projection

Medical device endoscope


Others

Industry Lenses(图1)
