Reticles
Product features:

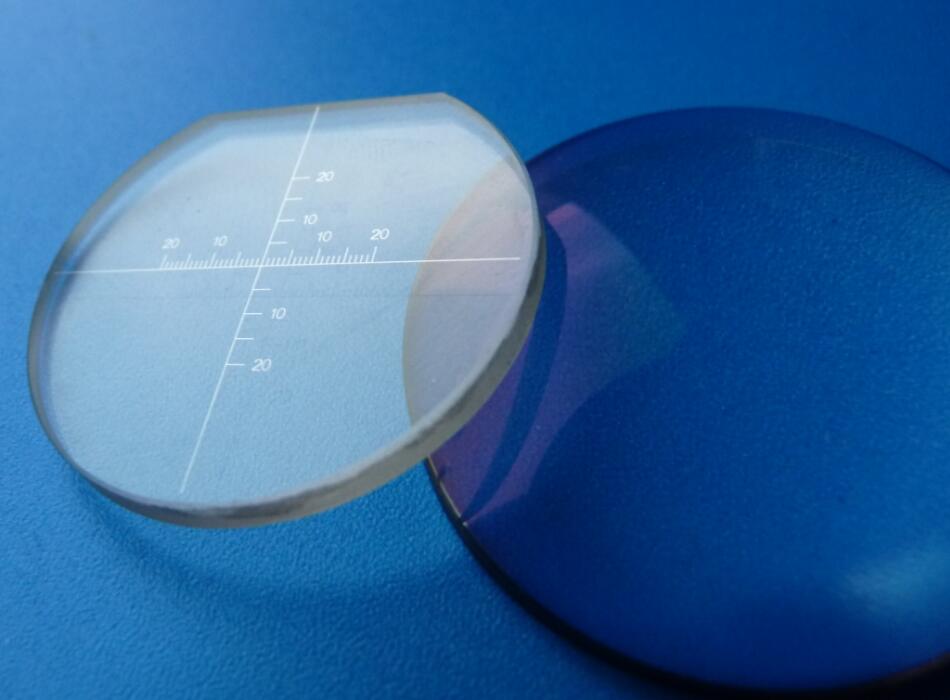

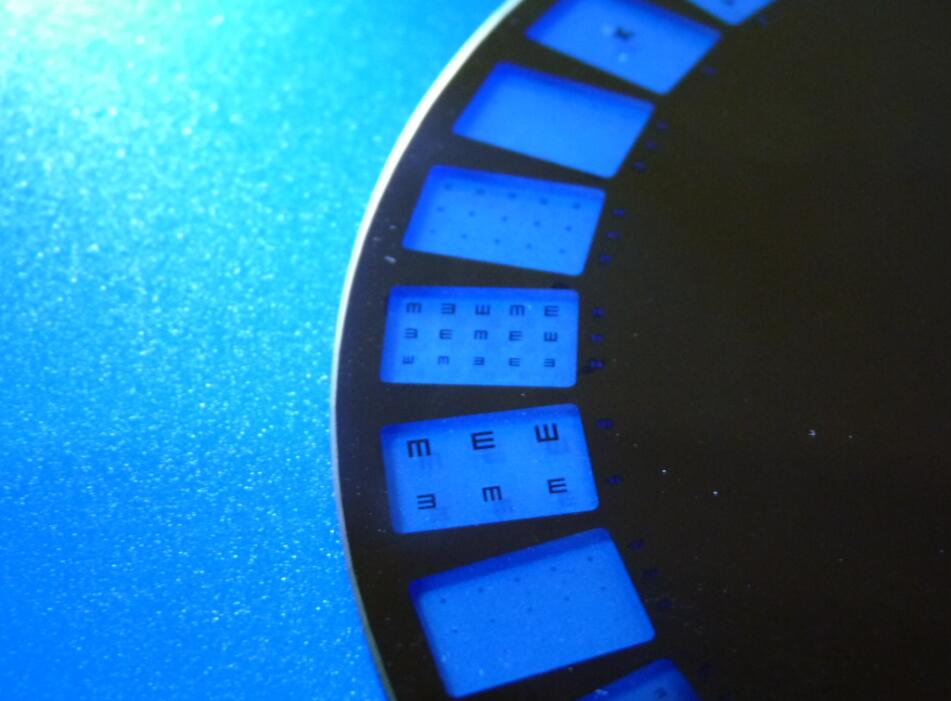

A reticle, also known as a graticule, scales, patterns, used in eyepiece of a sighting device, such as telescope, microscope, or oscilloscope, etc. They are engraved lines in the eyepieces, with chrome coating. The engraved signes including: cross, dots, lines, circles, scales, or a combination of these.
PHYO can make the engraveing both for chemical eitching or physical marking. With or without coating on the substrates. Both for positive or negative markings.
Specially we can reach blue color Chrome Coating on substrate get a clear image of eyepieces.
Description and Specs
General Spec for the reticles
Specification | Parameters Capabilities |
Material | BK7, Fused Silica, B270 etc |
Size range | Dia2mm to Dia300mm |
Type of reticle | Positive or negative upon request |
Line precision (tolerance) | For Chrome coating line +/-0.001mm |
Centering | 0.02 compare with center of line and center of the substrate |
Parallelism | 30arcsec |
Flatness | According to the substrate |
Surface quality | 10-5S/D |
Chamfering | Protection, no chamfer |
Coating | Double Sides AR, Reflective |
Shape of substrate | Round, Square, on prisms or Flat surface of lens |
Capacity | 100000 pcs per month (for example Dia25mm reticles) |
Application
Industry machine vision;
Medical device;
Cameras and telescopes;
Security and monitoring;
Rifle Scope
Measurement device
Projection
