Prisms
Product features:
A prism is the optical components with high precision polished surfaces. At least two of the flat surfaces have an angle between them. Mainly used for break light up like dispersive or beamsplitter. Or used for light reflection. Even some parts can be glued together for a certain light transmission or reflective purpose. PHYO High precision prisms can help you to reach the purpose as you want. It is customer oriented, easy for handle in assembly, coating still available. And you can check our coating specification if needed.
Description and Specs

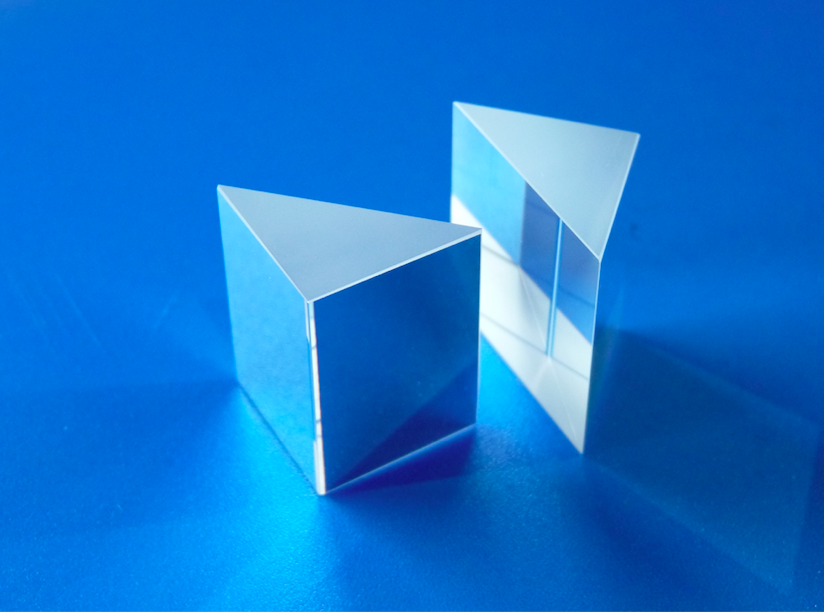

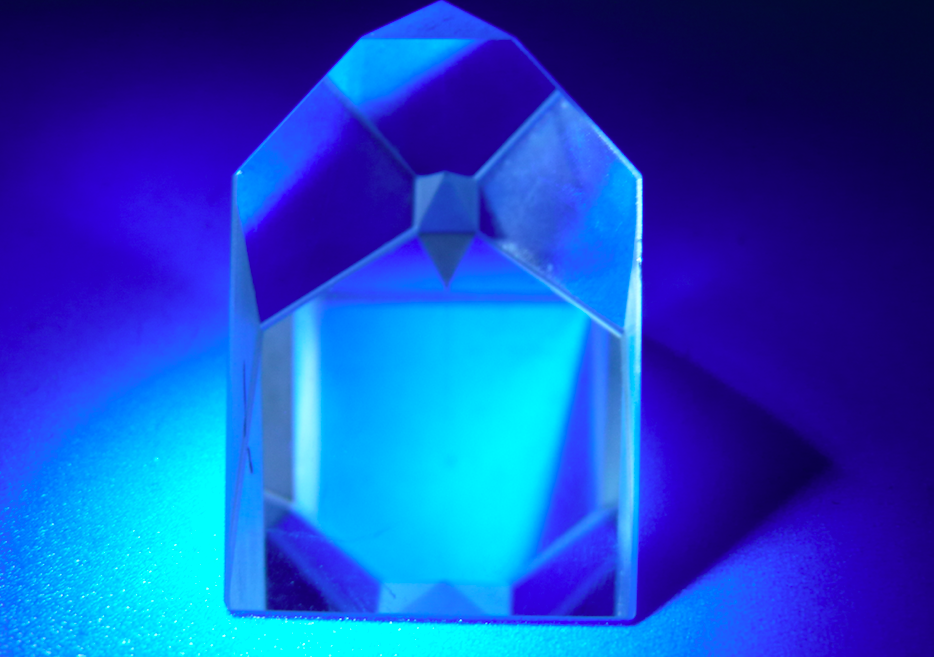

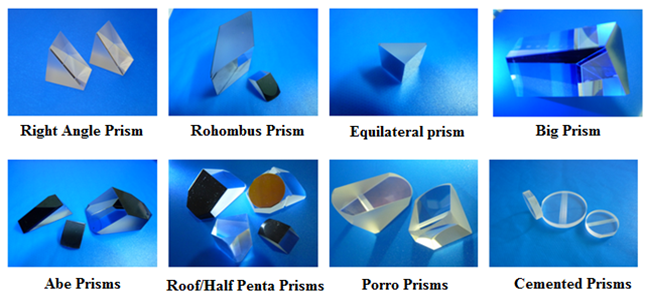

PHYO supply different type of prisms, which including right angle prisms, roof prisms, Porro prism, Penta Prism, Dove prism, Rhombic prism and conor prism.
The general specification of the prisms as :
Spec | Commercial | High Precision |
Material | As required like H-K9L,BK7,FS | As required like H-K9L,BK7,FS |
Demension Tolerance | +0/-0.2 | +0/-0.05 |
90degree daviation tolerance | 1-3arcmin | 10/-10arcsec |
45degree daviation tolerance | 20/-20arcsec | 3/-3arcsec |
Flatness per 25mm@632.8nm | L-L/2 | L/4-L/8 |
Surface quality | 80-50 | 40-20 |
Bevel | 0.05-0.2 | 0.05-0.2 |
Coating | AR, HR, Painting available | AR, HR, Painting available |
Customized coating upon request for mirror, dielectric, beamsplitter, beam combiner etc.
Material widely from Fused Silica, H-K9L.
Application
Industry machine vision;
Medical device;
Cameras and telescopes;
Security and monitoring;
Others
Customized Coating for dielectric, AR, HR, beamsplitters etc upon request.
- TIR Prisms coating

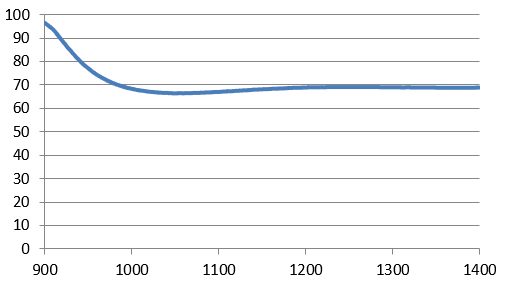

- Beamsplitter

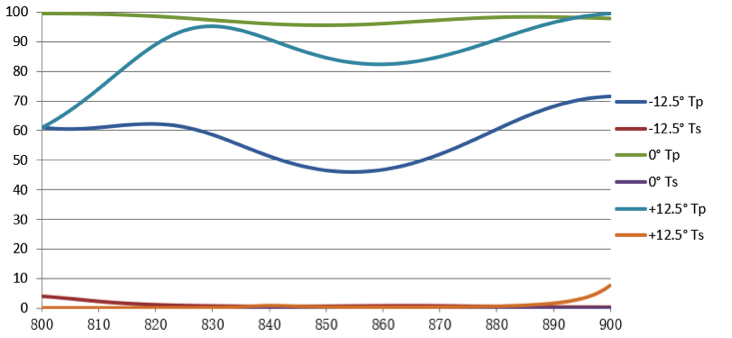

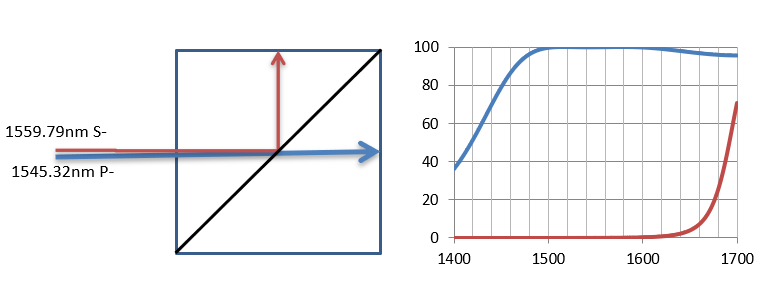

- PBS or X-Cube Coating of prisms
PHYO can offer for the following different type of prisms, for more details please contact our sales engineer.

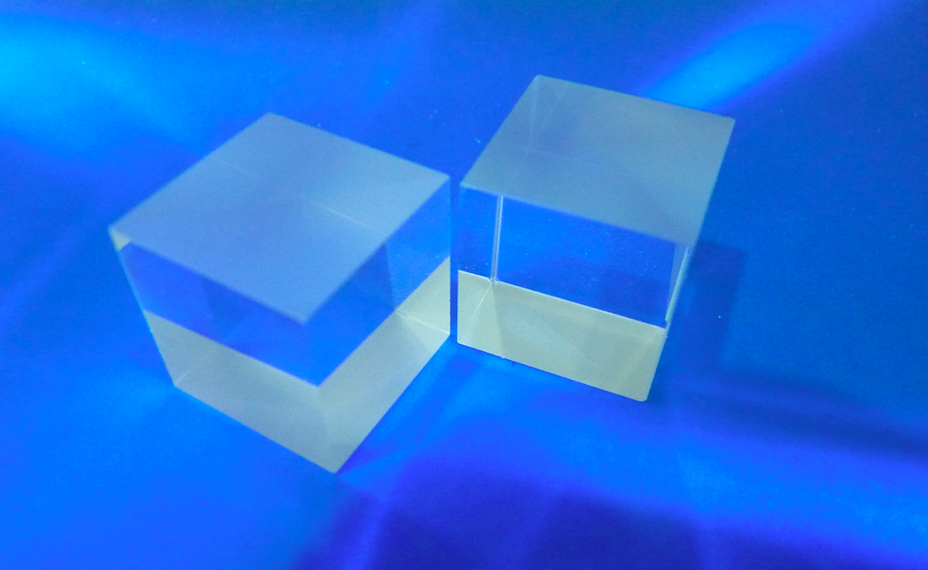

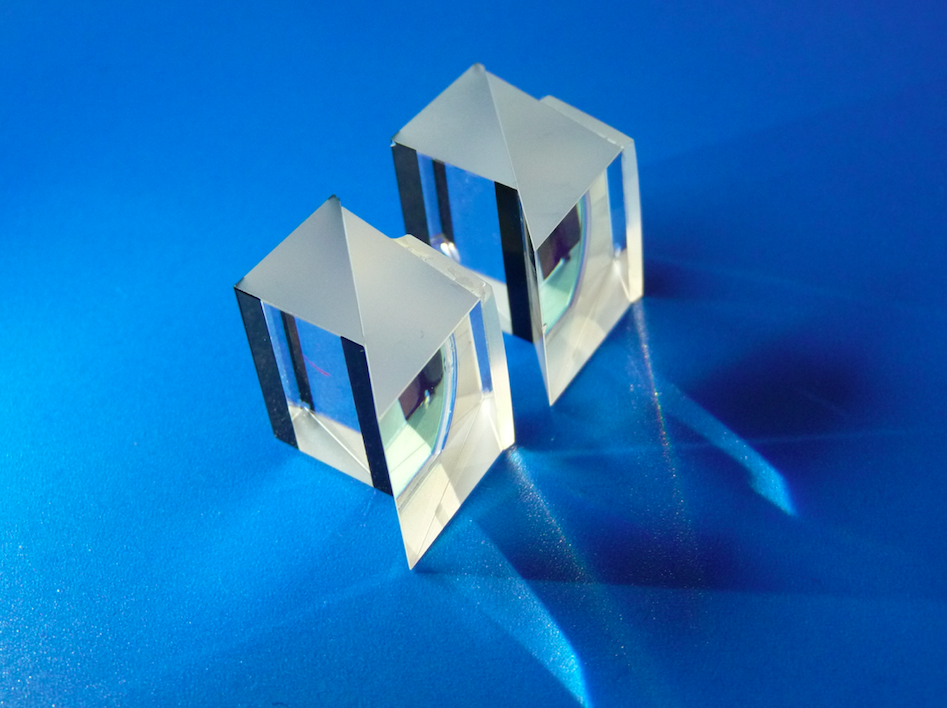

Typical Product available in stock : Right Angle prisms, roof prisms, beamsplitter cube, x-cube, PBS
